Name: High Quality Aluminum Tilt and Turn Casement Soundproof Window with Multi-Point Locking System
Brand: Skate (shanghai) Technology Co., Ltd.
SKU: SKATE 90 casement window
Price: 50.00 USD
Availability: InStock

Home > Products > Aluminum Casement Windows >

High Quality Aluminum Tilt and Turn Casement Soundproof Window with Multi-Point Locking System

Place of Origin:

Shandong, China

Brand Name:

SKATE

Certification:

CE,NFRC,AS2047

Model Number:

SKATE 90 casement window

Request A Quote

Product Details

Frame Material:

Thermal Break Aluminum Profile

After-sale Service:

Return And Replacement, Online Technical Support, Onsite Training, Free Spare Parts

Warranty:

5 Years

Frame Section Width:

90mm

Fan Section Thickness:

66.7mm

Number Of Sealing Layers:

8-way-seal

Insulation Strip:

30mm PA66 Nylon Insulation Strip

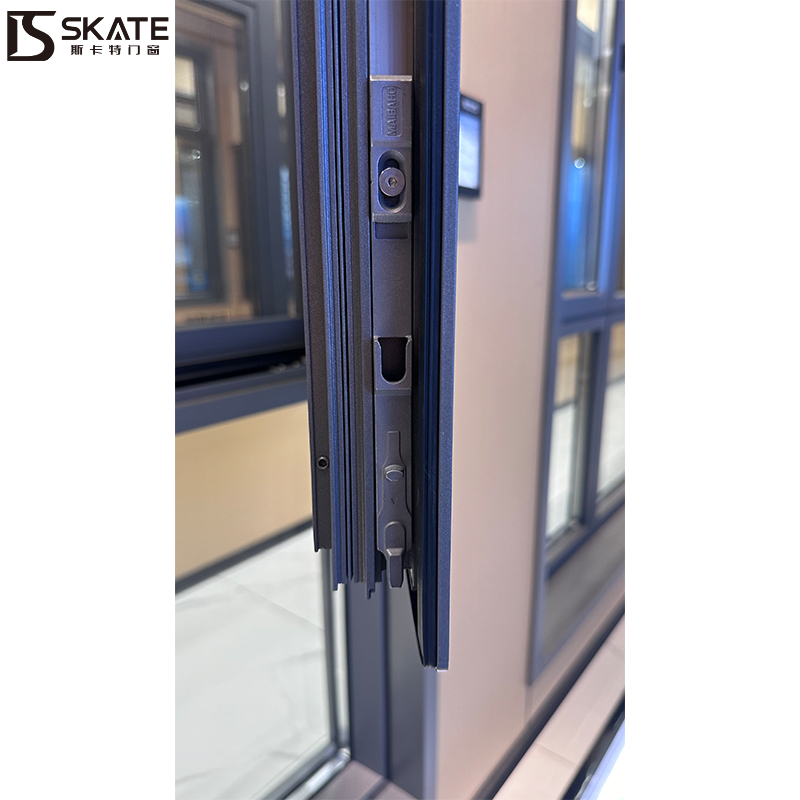

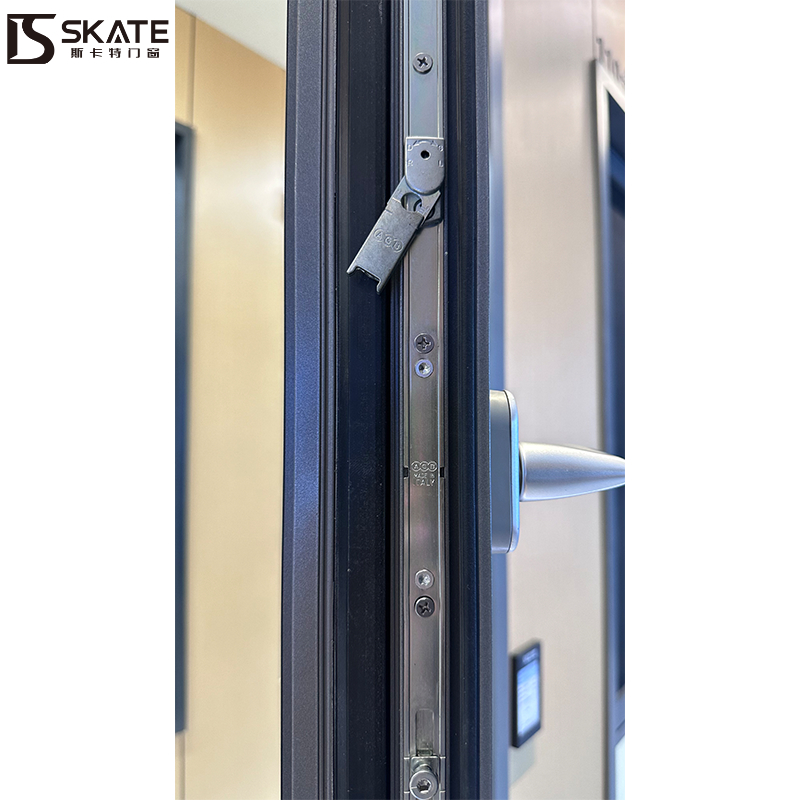

Locking Point Lock Seat:

Multi-locking Point System

Payment & Shipping Terms

Minimum Order Quantity

2 square meters

Price

$180.00/square meters 2-99 square meters

Packaging Details

Wooden Case or Iron Frame Packing

Delivery Time

25-45 work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

10000000 square meters per month

Wholesale Affordable Aluminum Double Glazed Casement Window with Multi-point locking system

Get Best Price

video

8 Way Seal Noise Insulation Windows Thermal Break Aluminum Profile For Noise-Free Work And Living Environments

Get Best Price

video

Durable Aluminium Casement Soundproof Door With Multi-Point Locking System For Home Commercial Spaces

Get Best Price

video

Easy Cleaning Aluminum Casement Weatherproof Windows with Natural Light for Living Room

Get Best Price

Contact Now

Product Description

Product Description

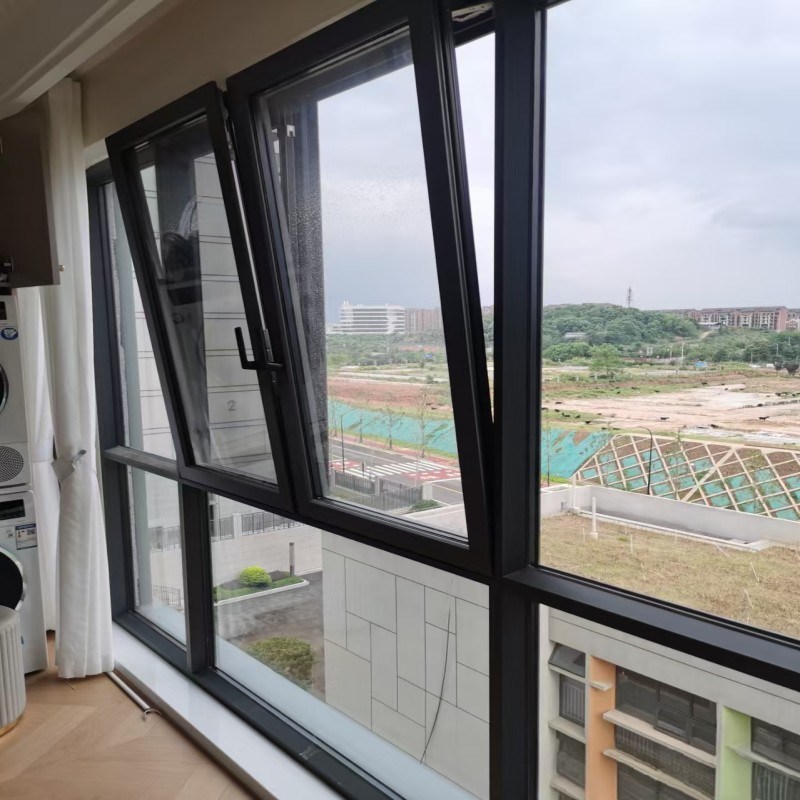

This 90-degree tilt-and-turn window is made from 6060-T66 aviation-grade aluminum alloy.
The average wall thickness of the profile is 1.8mm, making it stable, corrosion-resistant, and non-deformable.
For thermal insulation, 30mm wide, environmentally friendly PA66 nylon insulation strips are used.
Utilizing advanced cold extrusion technology, it offers high and low temperature resistance and effectively blocks heat and cold transfer.
The entire window frame, sash, center brace, and pressure line are seamlessly welded.
The multi-cavity isothermal structure minimizes indoor air loss and ensures a comfortable indoor temperature.
The hollow aluminum strips are infused with molecular sieves to effectively reduce glass fogging.

Specification

Model	90
Type	Casement Window
Opening Mode	inswinging casement/outswinging casement/tilt and turn
Air Tightness	Level 8
Wind Pressure Resistance	Level 9
Water Tightness	Level 6
Sound insulation	42dB
Thermal Insulation Performance	≤1.1W/(m2.K)
Glass	5+24A+5 5+9A+5+9A+5

Company Profile

SKATE is one of the first famous doors and Windows brands to enter the home decoration doors and Windows industry in China. It has now developed into a well-known Chinese enterprise mainly engaged in system doors and Windows, sunshine room, smart home, health and other related industries. Since its inception, SKATE adhere to the quality line, the pursuit of excellence, concentrate on the design and research and development of passive high-end doors and Windows, let more families use energy-saving and environmentally friendly passive doors and Windows is the most important corporate responsibility and social mission of SKATE's people. For more than 20 years, SKATE has adhered to its original intention and walked unswervingly till today!

FAQ

Q1:Are you a factory or a trading company?
SKATE Windows: We are a manufacturer which owned 2 factories, one in Beijing and one in Shandong. The total area of our factories is over 100,000m.
Q2: What is your warranty?
SKATE Windows: We offer a 5 year warranty on our products.
Q3: What services you have if windows were damaged?
SKATE Windows: We will replace you the products freely if the issues caused by us.More, we will provide replacement freely if the products is under warranty.
Q4: How can I get your price?
SKATE Windows: Please click the link below to send us an inquiry or contact our sales consultant. We have professional and experienced people to provide you with solutions and prices.

Packing & Delivery

Product Feature

High Quality Aluminum Tilt and Turn Casement Soundproof Window with Multi-Point Locking System 2

High Quality Aluminum Tilt and Turn Casement Soundproof Window with Multi-Point Locking System 3
